Advanced visual expressions

In addition to using the expression options that appear when you open the visual expression builder, you can also create additional configurations that add complexity to your expressions. This page explains the advanced expressions that you can achieve with the visual expression builder.

Key advanced features

The following table describes a few advanced options for the visual expression builder.

Feature	Description
Comparison	Lets you establish relationships between two simple expressions connected by an operator. This mode helps you perform comparisons or existence checks on your data that always evaluate to true or false.
Grouping	Combine multiple comparison expressions into groups using logical operators like AND and OR. This structure enables you to express intricate business logic in a visual format.
Parameters	Enables you to include variables in your expressions that may vary at runtime. Parameters only show up in the Configuration Variables of the visual expression builder after you have created them at the pipeline level.

Examples

Use comparisons to stratify accounts

Let's say you want to stratify accounts based on their annual revenues. Each condition we set up is limited to one comparison. This example combines conditional logic with comparison operators.

Create a new conditional column

To set up the comparison expressions to match the image above:

1. In the Reformat gem, under Target Column, click Select Column.
2. Give the column the name stratify_by_revenue.
3. Click Select expression > Conditional. A WHEN clause appears.

Configure the WHEN clause

1. For WHEN, click Select expression > Function.
2. Select Data type cast, which converts a value of one data type into another data type.
3. Select Throw error on failure to ensure the pipeline doesn't run if the type cast fails.
4. Click Select expression > Column and select ANNUALREVENUE.
5. Click Select data type > Float to convert the column to a Float type.
6. Click Select operator and select less than.
7. Click Select expression > Value and enter 1000000 as the value.

Configure the THEN clause

1. For THEN, click Select expression and select Value. Enter Low Revenue as the value.
2. Click + on the next line and select Add CASE to add another WHEN clause.
3. Repeat steps 3 to 8 to set up the rest of the comparison expressions.
4. Click + on the next line and select Add ELSE to add an ELSE statement.
5. Click Select expression and select Value. Enter Unknown as the value.

This conditional expression will categorize your accounts based on revenue thresholds, making it easier to perform segment-specific analysis and reporting. When the pipeline runs, each account will be assigned to the appropriate revenue category based on the conditions you've defined.

Use groupings to create complex filters

When filtering data, you often want the output data to meet multiple criteria. You can use Grouping for this by creating multiple AND and OR statements.

Assume you have a dataset where you want to filter for the following:

• Total expected revenue that is not null
• Total amounts that are greater than 100000
• Latest closed quarters that equals 2023Q2 or 2024Q2

tip

You can have any number of groups and nestings (a group within a group). You can also always change the grouping conditions between AND and OR.

Set up base filter conditions

To set up the grouping expressions to match the image above:

1. After creating the Filer gem, click Add condition. An option to Select expression appears.
2. Click Select expression > Column.
3. Select TOTAL_EXPECTED_REVENUE from the list.
4. Click Select operator and select is not null.
5. Click + Add Condition to add another condition expression.
6. Click Select expression > Column.
7. Select TOTAL_AMOUNT from the list.
8. Click Select operator and select greater than.
9. Click Select expression > Value.
10. Enter 100000 as the value.

Add grouped OR condition

1. Click Add Group. A grouped expression row appears.
2. Click Select expression > Column.
3. Select LATEST_CLOSED_QTR from the list.
4. Click Select operator and select equals.
5. Click Select expression > Value.
6. Enter 2023Q3 as the value.
7. Click + Add Condition and repeat steps 2 to 6 to set up the other OR condition.

This complex filter will return only high-value opportunities from specific quarters that have valid expected revenue values. By combining AND and OR conditions in this way, you can create precise data subsets that match your exact business requirements.

Create dynamic expressions with parameters

When you use a pipeline parameter in a visual expression, you can manipulate the value of that parameter using different configs at runtime. Let's review an example that leverages an array parameter in a Filter gem.

Imagine that you want to filter an Orders dataset based on the region where the order was placed. Specifically, you only want to keep rows where the region is included in the array parameter.

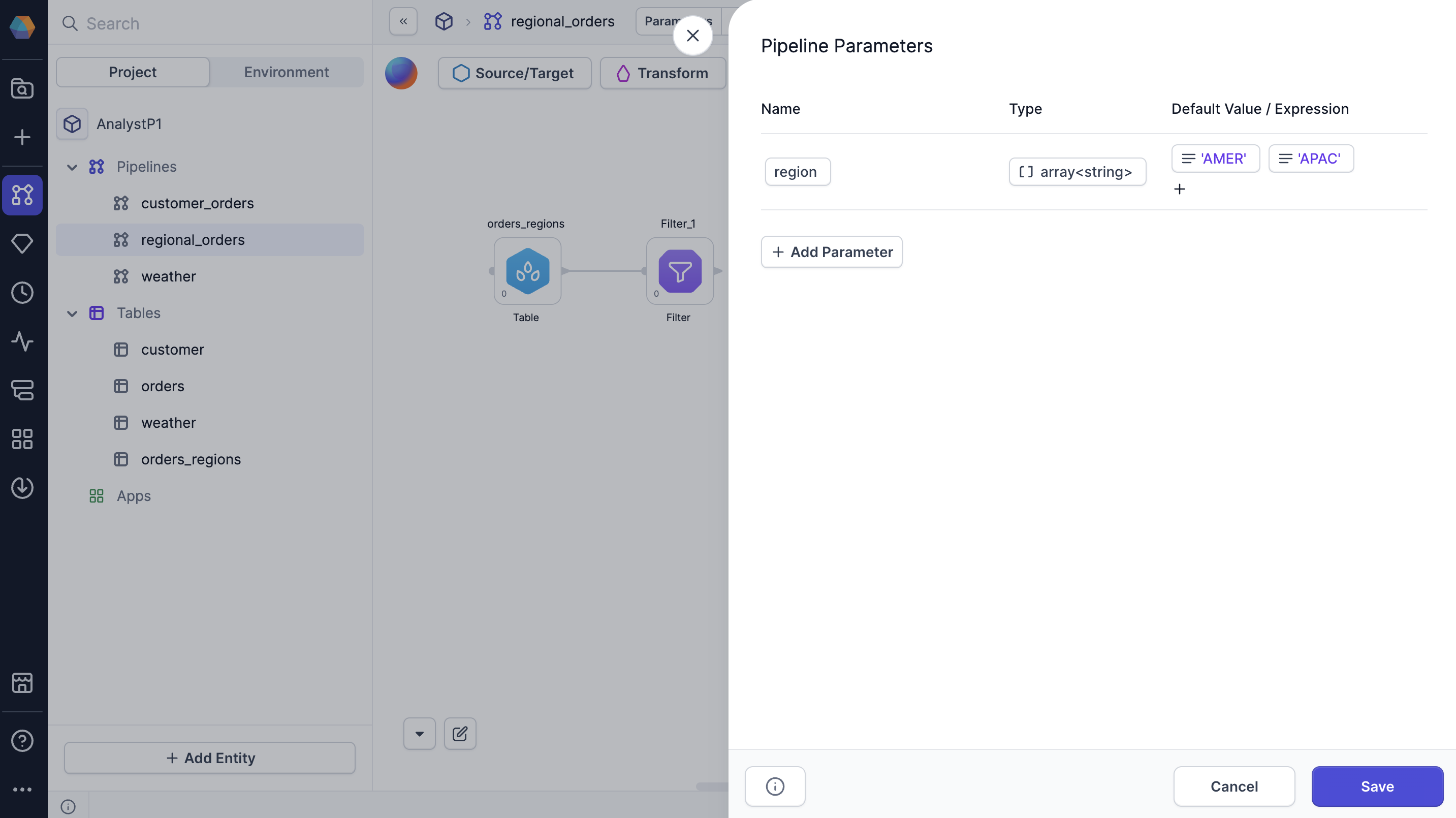

Create an array parameter

First, you'll set up a region parameter, which will be an array of strings that includes a subset of regions.

1. Open your project and select Parameters in the header.
2. Click + Add Parameter.
3. Name the parameter region.
4. Select the Type and choose Array > String.
5. Click Select expression > Value.
6. Type AMER and click Done.
7. Select + to add another string to the array.
8. Type APAC and click Done.
9. Now, click Save.

Use the parameter in an expression

Now, you'll use the parameter in an expression inside a Filter gem.

1. Create and open the Filter gem.
2. Remove the default true expression.
3. Click Select expression > Function and select array_contains.
4. In the array dropdown of the function, click Configuration Variable and select the region parameter.
5. In the value dropdown of the function, click Column and select the order region column.

The output of this gem will only include rows where the order region matches at least one value in the region array. When you run the pipeline interactively, it will use the values of the default array that you set up in the previous section.

Validate your expressions

Run the pipeline up to and including the gem with your expression, and observe the resulting data sample. To do so, click the play button on either the canvas or the gem. Once the code has finished running, you can verify the results to make sure they match your expectations. You can explore the result of your gem in the Data Explorer.

Tips

Here are some additional tips to keep in mind when using the visual expression builder:

• The expression dropdowns support search.
• Each argument of your function is another expression since you have the same expression options to choose from.
• You can drag and drop your comparison expressions to rearrange them.
• Just as with conditions, you can also drag and drop your grouping expressions to rearrange them.
• You can delete individual expressions, conditions, and groupings by clicking the trash icon at the end of the rows.
